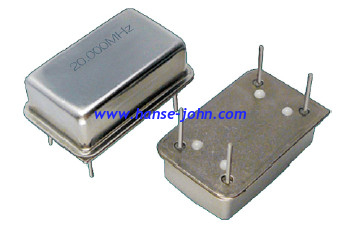

CRYSTAL FILTER LST124.8M70B ceramic、khz、crystal、saw、Discriminator、Oscillator

Minimum Order Quantity:	1500
Price:	￥1600/pcs
Packaging Details:	In standard export packing as per manufacturer
Delivery Time:	25 day
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000

Contact Now

Detailed Product Description

Nominal Center Frequency:	124.800Mhz	Pass Band Width At 3dB:	35Khz MIN
Ripple In Pass Band Width:	0.5dB MAX	Insertion Loss:	3.0dB MAX
60dB Stop Band Width:	350Khz Max	80dB Stop Band Width:	768Khz Max
Guaranteed Attenuation:	60dB Min	Spurious Response:	45dB Min
Group Delay Distortion:	40us Max @f0±7.5kHz	Terminating Impedance:	50Ω
Input Level:	0dBm	Group Delay Time:	±2us Max @f0
+/-20Khz Group Delay Variation:	1us Max	+/-35Khz Group Delay Variation:	2us Max
Operating Temperature Range:	-40℃～+85℃	Dimensions:	36mm×16mm×12mm

LST124.8M70B

SPECIFICATIONS OF CRYSTAL FILTER LST124.8M70B

1.	(Model ):	LST124.8M70B
2.	(Nominal Center Frequency):	124.8MHz
3.	(Pass Band Width at 3dB):	≥±35kHz
4.	(Ripple in Pass Band Width):	≤0.5dB
5.	(Insertion Loss):	≤3.0dB
6.	(Stop Band Width ):	≤±350kHz @60dB
		≤- 768kHz @80dB
7.	(Guaranteed Attenuation):	≥60dB
8.	(Spurious response)	≥45dB
9.	(Group delay distortion):	≤40us @f₀±7.5kHz
10.	(Terminating Impedance):	50Ω
11.	(Input level):	0dBm
12.	(Group Delay time):	≤±2us @f₀
13.	(Group Delay variation):	≤1us @f₀±20kHz
		≤2us @f₀±35kHz
14.	(Operating Temperature Range):	-40℃～+85℃
15.	(Dimensions):	36mm×16mm×12mm
