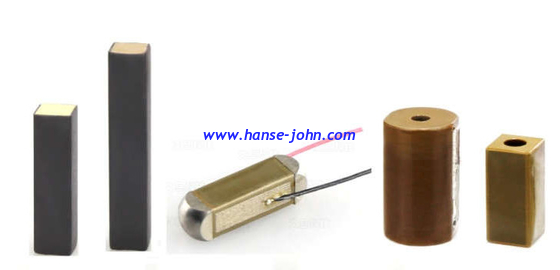

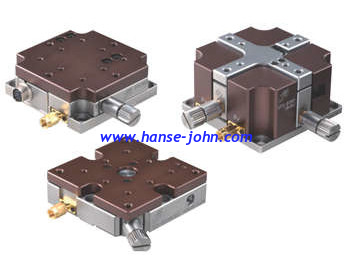

Multilayer Piezo Rectangular Actuators Linear control / HMJ200 series

Product Details:

Place of Origin:	CN
Brand Name:	HM
Certification:	CE, RoHS, SGS ISO9001:2008, ISO14001:2015
Model Number:	ALL

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	$400~$5000
Packaging Details:	In standard export packing as per manufacturer
Delivery Time:	30 WORK DAYS
Payment Terms:	MoneyGram PAYPLE
Supply Ability:	10000PCS/MONTH

Contact Now

Detailed Product Description

Material ::	Piezoelectric Ceramics	Working Voltage::	-20 To 150V DC
Operating Temperature Range::	Operating Temperature Range: -20 To 120℃	Maximum Preload For Constant Force::	20MPa
Recommended Preload For Dynamic Operation::	15MPa	Shape::	Rectangular And Square
Accurate Positioning:	Nm	High-speed Response:	Ms
Large Blocking Force:	Large Blocking Force	High Energy Conversion Efficiency, Low Power Consumption And No Electromagnetic Noise:	High Energy Conversion Efficiency, Low Power Consumption And No Electromagnetic Noise
Easy To Be Controlled By Voltage:	Easy To Be Controlled By Voltage	Precision Mechanics And Mechanical Engineering:	Precision Mechanics And Mechanical Engineering
Life Sciences,Medicine And Biology:	Life Sciences,Medicine And Biology	Pneumatic&Hydraulic Valves:	Pneumatic&Hydraulic Valves
Nano Positioning/high-speed Switching:	Nano Positioning/high-speed Switching	Active And Adaptive Optics:	Active And Adaptive Optics

Features

Compact size
Accurate positioning in nm
High-speed response in ms
Large blocking force
High energy conversion efficiency, low power consumption and no electromagnetic noise
Easy to be controlled by voltage

Scope of applications

Precision mechanics and mechanical engineering
Life sciences,Medicine and Biology
Pneumatic&Hydraulic valves
Nano positioning/high-speed switching
Active and Adaptive optics

Dimensions

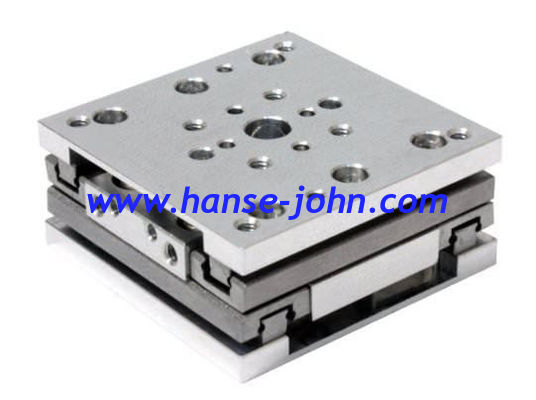

Multilayer Piezo Rectangular Actuators Linear control / HMJ200 series

Specification

Model	Dimensions	Nominal displacement	Blocking force	Stiffness	Electrical capacitance	Resonance Frequency
	A×B×H [mm]	[µm@200V]	[N@200V]	[N/µm]	[µF]	[kHz]
	±0.05	±10%			±20%	±20%
HMJ2000303051	3×3×6	5	330	66	0.11	250
HMJ2000303101	3×3×10	10	330	33	0.25	150
HMJ2000505051	5×5×6	5	900	180	0.35	250
HMJ2000505101	5×5×10	10	900	90	0.55	150
HMJ2000505121	5×5×12	12	900	75	0.57	125
HMJ2000505201	5×5×18	20	900	45	0.9	83
HMJ2000505301	5×5×28	30	900	30	1.5	53
HMJ2000505302	5×5×30	30	900	30	1.5	50
HMJ2000505401	5×5×36	40	900	23	1.8	42
HMJ2000505402	5×5×35	40	900	23	1.8	43
HMJ2000707101	7×7×10	10	1800	180	1.0	150
HMJ2000707201	7×7×18	20	1800	90	1.9	83
HMJ2000707301	7×7×28	30	1800	60	3	53
HMJ2000707381	7×7×32	38	1800	47	3.2	47
HMJ2000707401	7×7×36	40	1800	45	3.8	42
HMJ2000707501	7×7×42	50	1800	36	4.5	36
HMJ2001010101	10×10×10	10	3600	360	2.0	150
HMJ2001010201	10×10×18	20	3600	180	3.5	83
HMJ2001010301	10×10×28	30	3600	120	6.0	53
HMJ2001010401	10×10×36	40	3600	90	7.0	42
HMJ2001414101	14×14×10	10	7200	720	3.5	150
HMJ2001414201	14×14×20	20	7200	360	6.5	75
HMJ2001414301	14×14×30	30	7200	240	9.5	50
HMJ2001414401	14×14×40	40	7200	180	13	37

* Customize on request.

Key Technical Index	Unit	Value
Relative dielectric constant ε_r3^T	-	3500±20%
Electromechanical coupling factor Kp	-	70%
Longitudinal piezoelectric strain coefficient d₃₃	10^-12C/N	≥650
Piezoelectric voltage constant g₃₃	10^-3Vm/N	17
Elastic flexible coefficient S₁₁^E	10^-12m²/N	14.3
Elastic flexible coefficient S₃₃^E	10^-12m²/N	18.5
Dielectric loss tgδ	10^-3	≤1.5
M quality factor Qm	-	45
Curie temperature T_C	℃	240
Density ρ	g/cm³	7.9
