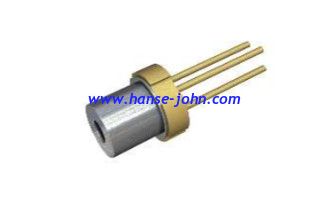

Name: 635nm 10mW 50 oC Reliable Operation laser diode High visibility Higher Power Small perpendicular divergence angle
Brand: hanse-john electronic Co.,Ltd.
SKU: STL-462-ZSP
Price: Negotiable USD
Availability: InStock

Home Products sensor

635nm 10mW 50 oC Reliable Operation laser diode High visibility Higher Power Small perpendicular divergence angle

Product Details:

Place of Origin:	China
Brand Name:	HM
Certification:	Rohs，ISO
Model Number:	STL-462-ZSP

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	$2.35-$10
Packaging Details:	In standard export packing as per manufacturer
Delivery Time:	25 day
Payment Terms:	MoneyGram, T/T, L/C
Supply Ability:	200000pcs per month

Contact Now

Detailed Product Description

Light Output Power:	24mW（P。）	Reverse Voltage (LD):	2V
Reverse Voltage (PD):	30V	Forward Current (PD):	10mA
Case Temperature:	-10~+50 ºC	Storage Temperature:	-40~+85 ºC
Peak Wavelength:	635 Nm	Threshold Current:	35mA
Operating Current:	60mA	Operating Voltage:	2.4V
Differential Efficiency:	0.4 MW/mA	Monitor Current:	0.2mA
Parallel Divergence Angle:	7.5 Deg	Perpendicular Divergence Angle:	32 Deg
Parallel FFP Deviation Angle:	-2.5~+2.0 Deg	Emission Point Accuracy:	-60~80 Um
Perpendicular FFP Deviation Angle:	-2.5~+2.0 Deg

635nm 10mW 50 oC Reliable Operation laser diode High visibility Higher Power Small perpendicular divergence angle
