Multilayer Piezo Customization/ Tips mounted type

Product Details:

Place of Origin:	CN
Brand Name:	HM
Certification:	CE, RoHS, SGS ISO9001:2008, ISO14001:2015
Model Number:	ALL

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$100~$5000
Delivery Time:	30 WORK DAYS
Payment Terms:	MoneyGram PAYPLE
Supply Ability:	10000PCS/MONTH

Contact Now

Detailed Product Description

Features

Compact size
Accurate positioning in nm
High-speed response in ms
Large blocking force
High energy conversion efficiency, low power consumption and no electromagnetic noise
Easy to be controlled by voltage

Scope of applications

Precision mechanics and mechanical engineering
Life sciences,Medicine and Biology
Pneumatic&Hydraulic valves

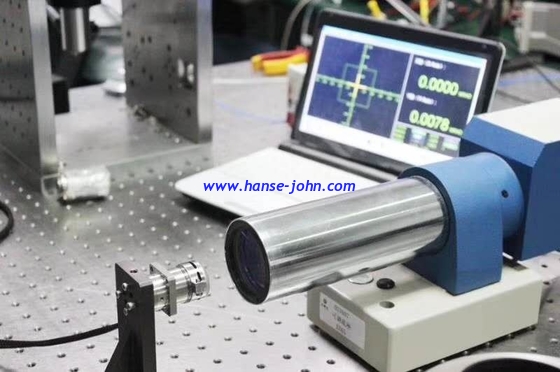

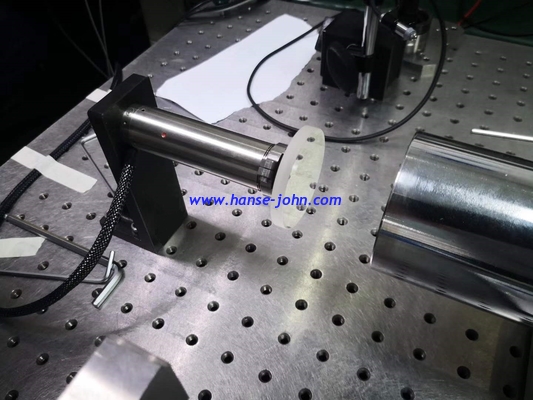

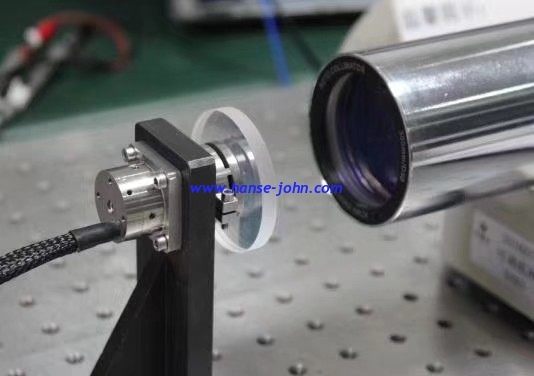

Nano positioning/high-speed switching
Active and Adaptive optics

Part numbering

Multilayer Piezo Customization/ Tips mounted type

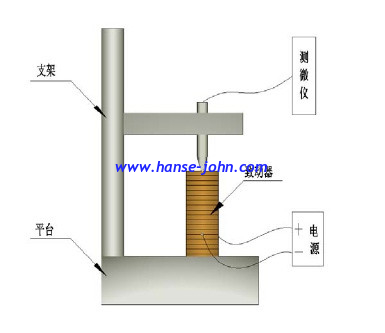

Dimensions

Multilayer Piezo Customization/ Tips mounted type

Specification

* Customize on request.

Key Technical Index	Unit	Value
Relative dielectric constant ε_r3^T	-	3500±20%
Electromechanical coupling factor Kp	-	70%
Longitudinal piezoelectric strain coefficient d₃₃	10^-12C/N	≥650
Piezoelectric voltage constant g₃₃	10^-3Vm/N	17
Elastic flexible coefficient S₁₁^E	10^-12m²/N	14.3
Elastic flexible coefficient S₃₃^E	10^-12m²/N	18.5
Dielectric loss tgδ	10^-3	≤1.5
M quality factor Qm	-	45
Curie temperature T_C	℃	240
Density ρ	g/cm³	7.9
