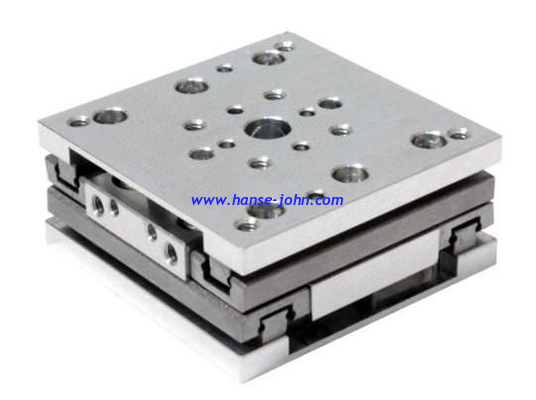

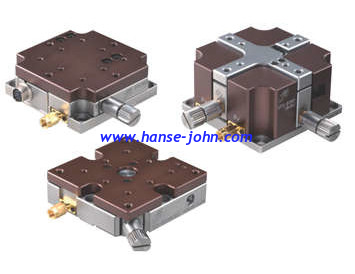

Multilayer Piezo Rectangular Actuators/ HMY150 series Reliable Piezo Motion Devices for Industrial and Space Applicatio

Product Details:

Place of Origin:	CN
Brand Name:	HM
Certification:	CE, RoHS, SGS ISO9001:2008, ISO14001:2015
Model Number:	ALL

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	$100~$5000
Delivery Time:	30 WORK DAYS
Payment Terms:	MoneyGram PAYPLE
Supply Ability:	10000PCS/MONTH

Contact Now

Detailed Product Description

Another feature to consider is the stress on the electrodes. Repeating the same motion 100 billion times can wear you out. To avoid fractures of the termination electrodes, a patented meander-shaped design ensures all internal electrodes have a stable electrical contact even at extreme dynamic loads. This is why the actuator design will survive where other designs fail.

Features

Compact size
Accurate positioning in nm
High-speed response in ms
Large blocking force
High energy conversion efficiency, low power consumption and no electromagnetic noise
Easy to be controlled by voltage

Scope of applications

Precision mechanics and mechanical engineering
Life sciences,Medicine and Biology
Pneumatic&Hydraulic valves
Nano positioning/high-speed switching
Active and Adaptive optics

Part numbering

Multilayer Piezo Rectangular Actuators/ HMY150 series Reliable Piezo Motion Devices for Industrial and Space Applicatio

Dimensions

Multilayer Piezo Rectangular Actuators/ HMY150 series Reliable Piezo Motion Devices for Industrial and Space Applicatio

Specification

Model	Dimensions	Nominal displacement	Blocking force	Stiffness	Electrical capacitance	Resonance Frequency
	OD/H	[µm@150V]	[N@150V]	[N/µm]	[µF]	[kHz]
	[mm]	±10%			±20%	±20%
HMY15014831	Φ14/79	83	7500	85	43	19
HMY15014241	Φ14.2/24	24	7500	312	16	62
HMY15014481	Φ14.2/48	48	7500	156	30	31
HMY15014201	Φ14.7/20	20	7500	375	13	75
HMY15014401	Φ14.7/40	40	7500	188	27	37.5
HMY15014801	Φ14.7/80	88	7500	85	50	18

* Customize on request.

Key Technical Index	Unit	Value
Relative dielectric constant ε_r3^T	-	3500±20%
Electromechanical coupling factor Kp	-	70%
Longitudinal piezoelectric strain coefficient d₃₃	10^-12C/N	≥650
Piezoelectric voltage constant g₃₃	10^-3Vm/N	17
Elastic flexible coefficient S₁₁^E	10^-12m²/N	14.3
Elastic flexible coefficient S₃₃^E	10^-12m²/N	18.5
Dielectric loss tgδ	10^-3	≤1.5
M quality factor Qm	-	45
Curie temperature T_C	℃	240
Density ρ	g/cm³	7.9
