We make all our piezo components on request to match specific requirements.
Contact us for further information
If you want to know more about the possibilities, please contact us using our Request for Quote form or contact us

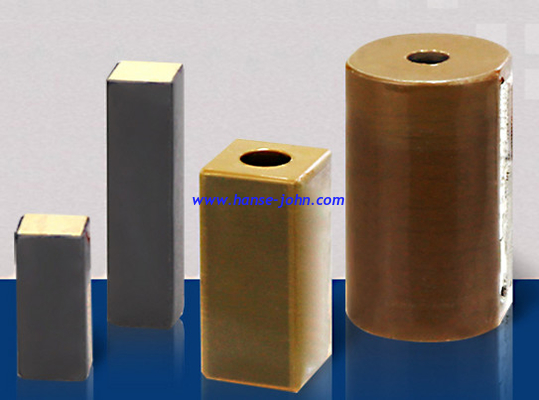

Features
Compact size
Accurate positioning in nm
High-speed response in ms
Large blocking force
High energy conversion efficiency, low power consumption and no electromagnetic noise
Easy to be controlled by voltage
Scope of applications
Precision mechanics and mechanical engineering
Life sciences,Medicine and Biology
Pneumatic&Hydraulic valves

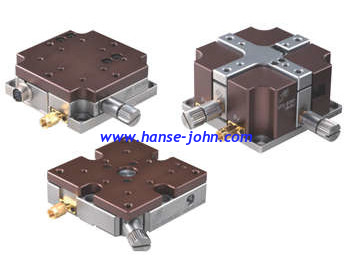

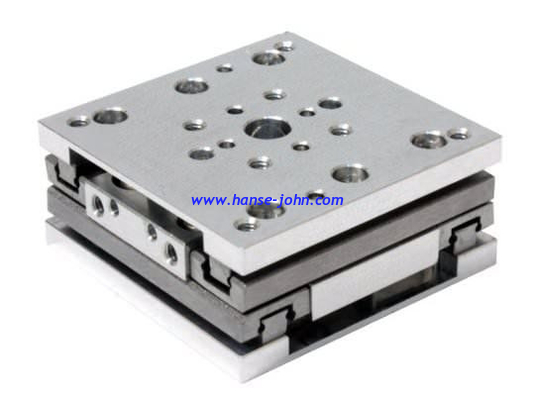

Nano positioning/high-speed switching
Active and Adaptive optics
Part numbering

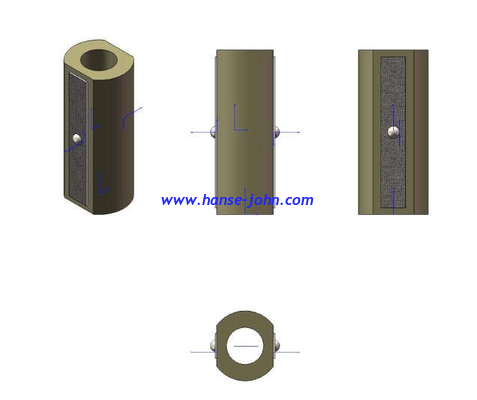

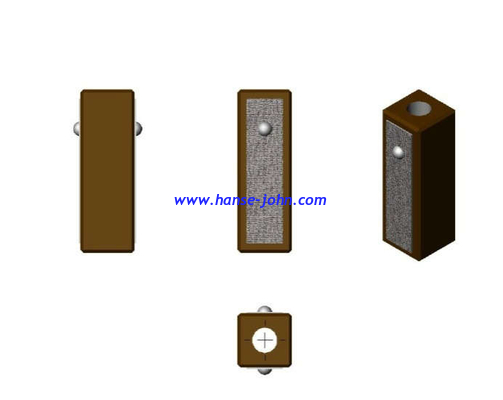

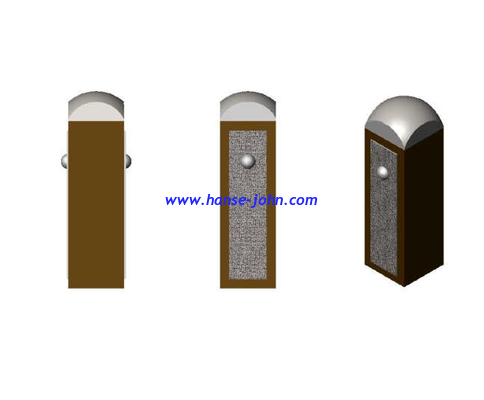

Dimensions

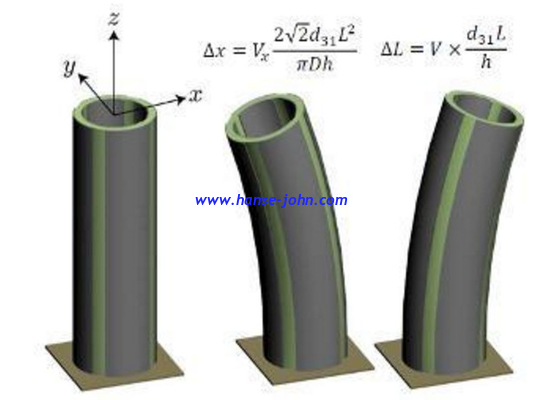

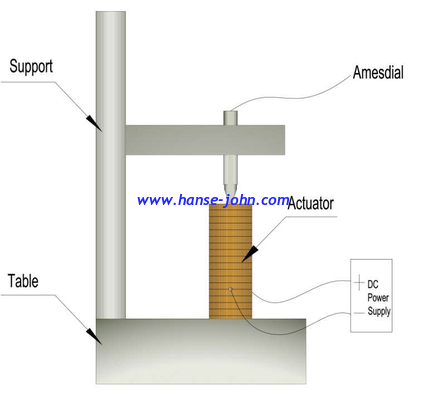

The operation of the piezo ceramic actuator is characterized by four factors: a) precision; b) speed; c) high force and d) relatively short displacement. Since the positioning precision is derived from molecular effects, if is free of stiction and friction which allows controllability down into the sub-nanometer range if desired. On the other hand, high force motion can be exerted in micro-seconds. This is why piezoelectric mechanisms are at the heart of the latest generation fuel injection valves as well as in today’s semiconductor lithography tools, super-resolution microscopes and a variety of other nanoscale-precision metrology and positioning systems.
Specification
|
Model
|
Dimensions |
Nominal displacement |
Blocking force |
Stiffness |
Electrical capacitance |
Resonance Frequency |
| OD/ID/H |
[µm@250V] |
[N@250V] |
[N/µm] |
[µF] |
[kHz] |
| [mm] |
±10% |
|
|
±20% |
±20% |
| HMH2501203201 |
Φ12/Φ3/20 |
20 |
3500 |
175 |
4.6 |
75 |
| HMH2502515301 |
Φ25/Φ15/30 |
30 |
9000 |
300 |
13.5 |
50 |
* Customize on request.
| Key Technical Index |
Unit |
Value |
| Relative dielectric constant εr3T |
- |
3500±20% |
| Electromechanical coupling factor Kp |
- |
70% |
| Longitudinal piezoelectric strain coefficient d33 |
10-12C/N |
≥650 |
| Piezoelectric voltage constant g33 |
10-3Vm/N |
17 |
| Elastic flexible coefficient S11E |
10-12m2/N |
14.3 |
| Elastic flexible coefficient S33E |
10-12m2/N |
18.5 |
| Dielectric loss tgδ |
10-3 |
≤1.5 |
| M quality factor Qm |
- |
45 |
| Curie temperature TC |
℃ |
240 |
| Density ρ |
g/cm3 |
7.9
|
Today, motion system designers can chose among a wide range of piezo motion controllers, spanning the spectrum of capability and cost.
OEM board-level piezo driver ,
Features that can be found even in compact, cost-efficient and OEM-friendly units include modern high-speed digital and analog communications interfaces, internal waveform-generation capability, advanced all-digital servo-algorithms with auto-calibration, data-recorders for evaluation of transients and system optimization
