Dual-mode waveguide Filters

Dual-mode waveguide Filters

    • Dual-mode waveguide Filters
    • Dual-mode waveguide Filters
    • Dual-mode waveguide Filters
    • Dual-mode waveguide Filters
    • Dual-mode waveguide Filters

    Product Details:

    Place of Origin: wuxi
    Brand Name: HM
    Certification: Pass-band low-loss, high rejection stopband, rectangular coefficient good
    Model Number: GHZ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1500
    Price: 2000.0 RMB
    Packaging Details: REEL
    Delivery Time: 25 day
    Payment Terms: 现金
    Supply Ability: 1000000
    Contact Now
    Detailed Product Description

    Dual-mode waveguide FiltersDual-mode waveguide Filters
    characteristics:

    1.low insertion loss

    2.high power capacity

    3.compact

    4.Easy to be integrated

    application:

    missile guidance ,millimeter radars,etc

    series product specifications:

    center frequency :30-70Ghz

    vswr:<1.5standard,1.2special

    relative bandwidth:1%-20%

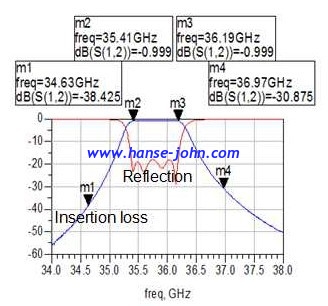

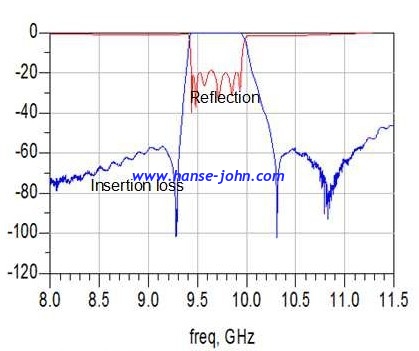

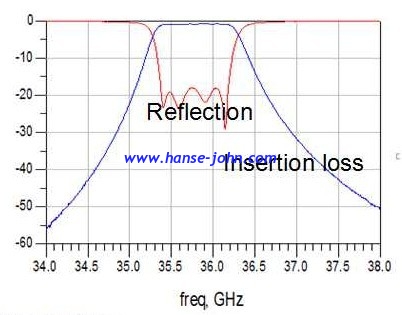

    insertion loss:<1dB depending on passband bandwidth and number of resonators
