millimeter wave filter 5005

millimeter wave filter 5005

    • millimeter wave filter 5005
    • millimeter wave filter 5005
    • millimeter wave filter 5005

    Product Details:

    Place of Origin: wuxi
    Brand Name: HM
    Certification: Pass-band low-loss, high rejection stopband, rectangular coefficient good
    Model Number: GHZ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1500
    Price: 2000.0 RMB
    Packaging Details: REEL
    Delivery Time: 25 day
    Payment Terms: 现金
    Supply Ability: 1000000
    Contact Now
    Detailed Product Description

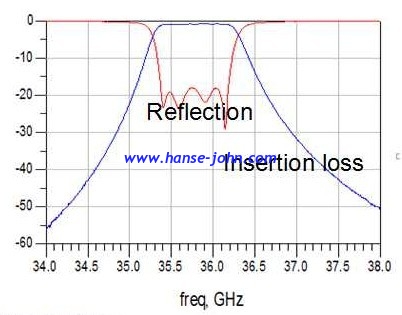

    millimeter wave filter 5005millimeter wave filter 5005

    L*W*H
    mm
    27.2*8.3*13.1




    model

    passband(GHz)

    Max.IL(dB)

    Stopband1 (GHz)

    Stopband2 (GHz)

    FL2CX32CX05-5005A

    31.2-32.8

    2.5

    30.1,50dB

    34, 50dB

    FL2CX31CX05-5005B

    30.225-31.775

    2.6

    29.1,50dB

    32.9,50dB

    FL2CX30CX05-5005C

    29.25-30.75　

    2.8

    28.2,50dB

    31.9,50dB

    FL2CX32CX07-5005D

    30.88-33.12　

    3.1　

    29.3,50dB　

    34.8, 50dB　

    FL2CX31CX07-5005E

    29.915-32.085　

    3.3　

    28.4,50dB

    33.7, 50dB　

    FL2CX30CX07-5005F

    28.95-31.05　

    3.7　

    27.5,50dB　

    32.6,50dB
