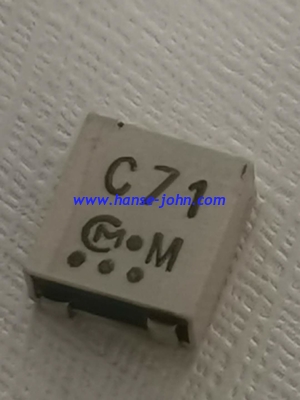

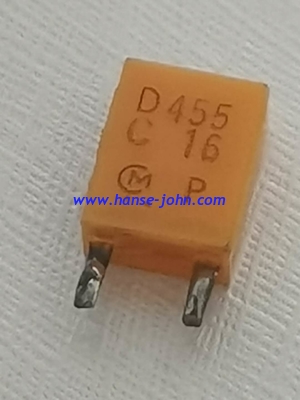

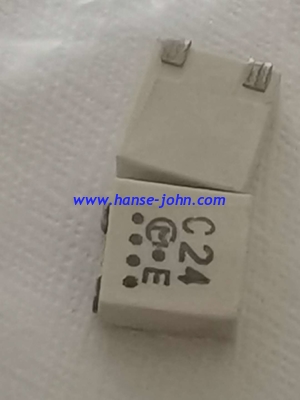

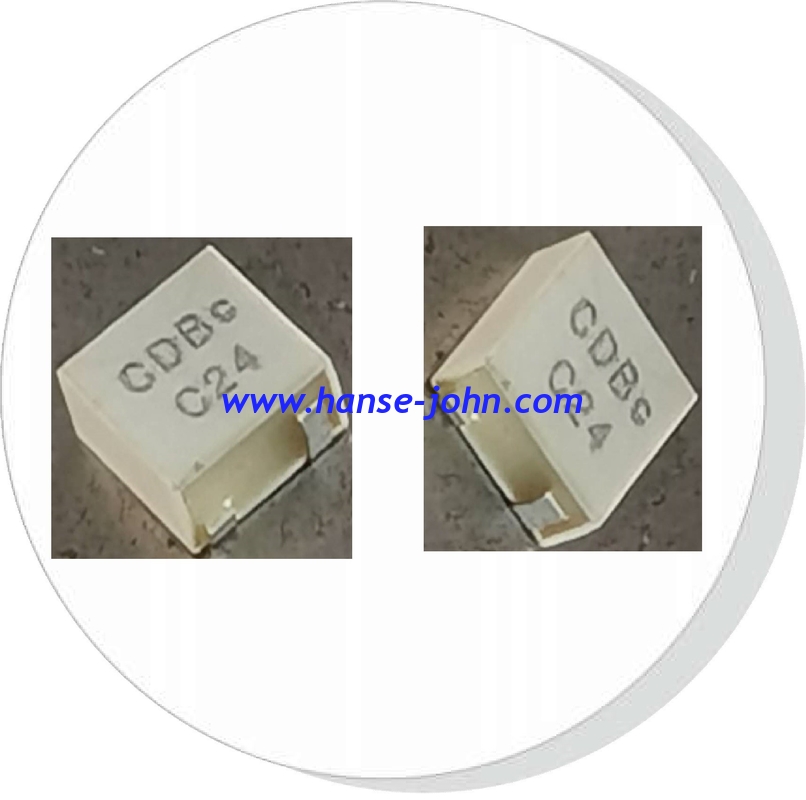

Piezoelectric Ceramic Discriminator CDBKB455KCAY66-R0 CDBc455C66 Alternative

Piezoelectric Ceramic Discriminator CDBKB455KCAY66-R0 CDBc455C66 Alternative

    • Piezoelectric Ceramic Discriminator CDBKB455KCAY66-R0  CDBc455C66 Alternative
    • Piezoelectric Ceramic Discriminator CDBKB455KCAY66-R0  CDBc455C66 Alternative
    • Piezoelectric Ceramic Discriminator CDBKB455KCAY66-R0  CDBc455C66 Alternative
    • Piezoelectric Ceramic Discriminator CDBKB455KCAY66-R0  CDBc455C66 Alternative
    • Piezoelectric Ceramic Discriminator CDBKB455KCAY66-R0  CDBc455C66 Alternative
  • Piezoelectric Ceramic Discriminator CDBKB455KCAY66-R0  CDBc455C66 Alternative

    Product Details:

    Place of Origin: wuxi
    Brand Name: HM
    Certification: Rohs
    Model Number: KHZ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: $0.35
    Packaging Details: REEL
    Delivery Time: 35 day
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1000000
    Contact Now
    Detailed Product Description
    Withstanding Voltage (Between Each Terminals): D.C. 50V,1 Minute Max. Insulation Resistance (Between Each Terminals): 100Mmin. (D.C.10V)
    Input Signal Level: +5dBm (50Termination) Operating Temperature Range: -20 To +80C
    Storage Temperature Range: -40 To +85C Nominal Center Frequency (fn): 455kHz
    Recovered Audio 3dB Bandwidth (from 455kHz): 4.2kHz Min. Recovered Audio Output Voltage (at 455kHz): 4010mV
    Distortion (at 455kHz): 4.0% Max. IC: NJM2590

    1. Scope





    The specification applies to the discriminator for IF demodulation used in communications equipment .







    2.Spec No.:HM-180.136b



    3.Part No.:CDBC455C66



    4. Input signal condition





    NO.  Item Specification
    4 – 1  Input level -27.0dBm
    4 – 2  Deviation ±1.5KHz
    4 – 3  Frequency Modulation 1.0 khz







    5.Electrical Characteristics





    NO.  Item Specification
    5 – 1  Modulation Frequency 455±1.0KHz
    5 – 2  Demodulated Bandwidth(3dB) ±4.2KHz min (from 455 kHz)
    5– 3  Demodulated Output4 0±10mV. (at 455 kHz)
    5 – 4  Demodulated Distortion Factor 4.0%Max.
    5 – 5  Withstand Voltage D.C. 50V for 1 minute







    6. :Measurement



    6-1. Measurement Condition



    Unless otherwise sepecified ,the shandard range of atmospheric conditions for measurements and tests are as follows:

    Ambient temperature:5℃ to 35 ℃ Relative humidity :45% to 85%

    Air pressure :86Kpa to 106 Kpa

    If there is doubt about the results, measurement shall be made within the following limits:

    Ambient temperature:18℃ to 22 ℃ Relative humidity :60% to 70%



    Air pressure :86Kpa to 106 Kpa

    6-2. Measuring Circuit

















    6-3.  Test Method







    Input signal condition

    Input level 80dBμ
    Frequency Deviation ±4.0 kHz
    Modulation Frequency 1.0 kHz



















    Demodulated 3dB Bandwidth

    Input the above signal and sweep the carrier around 455 kHz, and find

    Out the maximum audio output frequency. Then sweep the carrier frequency again and find two frequencies, which are observed

    –3dB attenuation points from the maximum point.

    Higher frequency point is called (f1) and lower called (f2). (F1-455KHz) is defined as upper 3dB bandwidth and (455KHz-f2) defined as lower

    3dB bandwidth.

























    Demodulate Output

    Demodulated output shall be measured when carrier frequency is adjusted to 455KHz.







    Demodulated

    Distortion Factor

    Carrier frequency is adjusted to

    455KHz.And distortion shall be measured with 1 kHz modulation frequency.





    7./outline

    7-1.

    Appearance:Mark shall be clear,appearance shall be smooth and no damage.

    7-2.

    Material List





    NO.  Item Specification
    1 Case Polybutenetelephthalate (mixture of glass fiber)
    2 Terminal  Phosphor bronze Ag Clad
    3 Base Sealing Epoxy resin



    7-3.

    Dimensions:(mm)



    (1)(2) Input/Output



    (3)Dummy

    8.Physical Characteristics







    NO.



    Item



    Measurement condition



    Requirement



    8-1



    Random Drop



    Filter shall be measured after 3 times random



    No visible damage and it







    drops from the height of 30cm on concrete

    floor

    meet Table 1









    8-2









    Vibration



    Filter shall be measured after being applied vibration of amplitude of 1.5mm with 10-55Hz band of vibration frequency to each of 3 perpendicular directions for 2 hours





    No damage and it meet

    Table 1.







    8-3







    Solderability



    Lead terminals are immersed in aide solder for

    5 sec and then immersed in soldering bath of

    230±5℃, for 3±0.5 sec.



    At least 95% lead terminals shall be covered with solder.





    8-4

    (1)



    Terminal strength  Pulling



    After force of 1kg for 10 seconds is applied to each terminal in axial direction, Filter shall be measured.





    No damage, no cut-off and it meet Table 1.















    (2)















    Bending



    After lead terminals shall be fixed at 2mm from filter’s body, they shall be folded up to

    90°from their axial directions and folded

    back to –90°.Then folded back to their axial direction, the speed of folding be each 3 seconds.













    No damage, no cut-off and it meet Table 1.



    9.Environmental Characteristics







    NO.



    Item



    Measurement condition



    Requirement











    9 – 1











    Humidity



    After being placed in a chamber with 90-95% R.H. at 40±2℃ for 100 hours and then being placed in room temperature for 1 hour, filter shall be measured.









    It shall meet Table 1.





    9 – 2



    Resistance to

    Solder Heat





    It shall meet Table 1.









    Lead terminals are immersed up to 1.5mm from filter’s body in soldering bath of 350±

    10℃, for 3±0.5 sec. And then filter shall be measured after being placed in room temperature for 1 hour.











    9 – 3





    High Temperature



    After being placed in a chamber with 80±2

    ℃,for 100 hours and then being placed in room temperature for 1 hour , filter shall be measured.









    It shall meet Table1









    9 – 4





     Low Temperature



    After being placed in a chamber with -20±2

    ℃,for 100 hours and then being placed in room temperature for 1 hour, filter shall be measured.









    It shall meet Table 1



















    9 – 5

















    Heat Shock



    After being kept at room temperature, filter shall be placed at temperature of –55 ℃ , for

    30 minutes, then be placed at temperature. 85

    ℃, for 30 minutes. After that returned to –55

    ℃ again. Repeated above cycle for 5 times. After being kept in room temp. for 1 hour, filter shall be measured

















    It shall meet Table 1



    10. Reflow conditions



    Piezoelectric Ceramic Discriminator CDBKB455KCAY66-R0  CDBc455C66 Alternative



     Table 1







    Item



    Specification

    Modulation Frequency 455±1.0KHz

    Demodulated

    Bandwidth(3dB)

    ±4.0KHz min (from 455 kHz)
     Demodulated Output 100±40mV. (at 455 kHz)

    Demodulated Distortion

    Factor

    2.0%Max.
