Product Details:

Place of Origin:	wuxi
Brand Name:	Hansejohn
Certification:	Pass-band low-loss , high rejection stopband, rectangular coefficient good

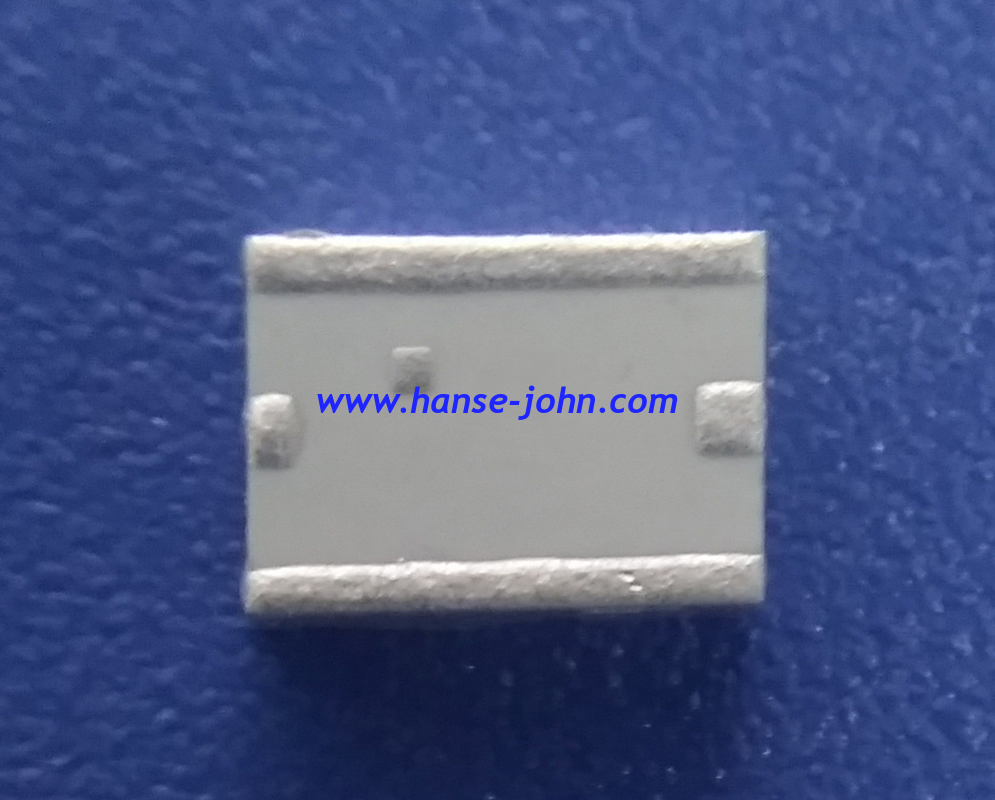

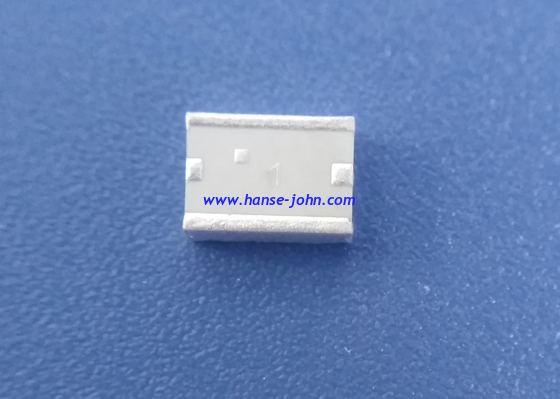

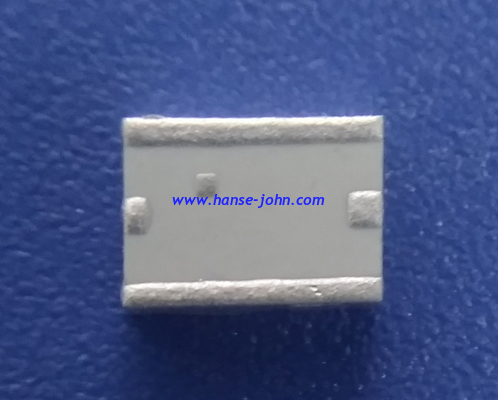

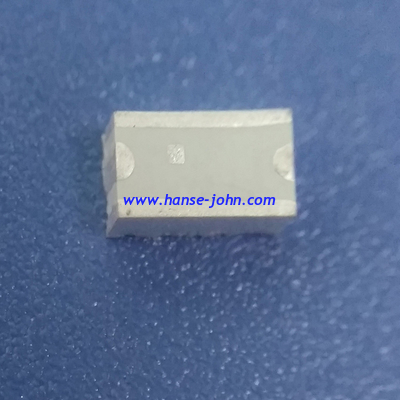

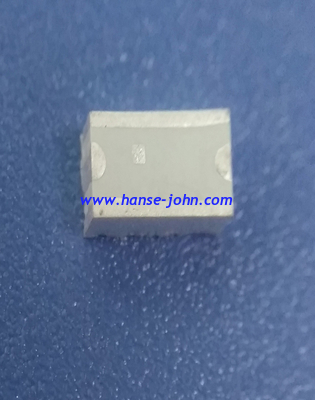

Model Number:	180MHZ LTCC Low Pass Filter, DC -180 MHz LF3216-180/LFCN-180(+)

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	$1-50/pcs
Packaging Details:	REEL
Delivery Time:	25 day
Payment Terms:	Western Union, MoneyGram
Supply Ability:	1000000

Contact Now

Detailed Product Description

Pass Band Insertion Loss F1:	DC-180.00Mhz <2.0dB	Pass Band Cut-off Frequency F2:	270Mhz
Pass Band VSWR:	DC-180Mhz <2.0	Stop Band Rejection Loss F3:	370Mhz>20dB
Stop Band Rejection Loss F4-F5:	525Mhz-2350Mhz >40dB	Stop Band Rejection Loss F6:	6400Mhz >20dB

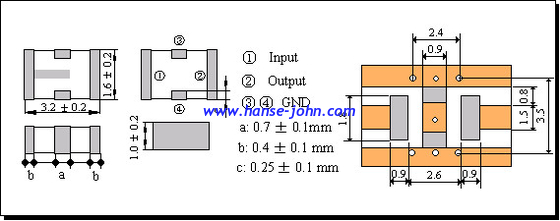

Stop Band VSWR:	370Mhz-6400Mhz >20	Size:	3.21.61.0mm
In/Output Impedance:	50ohm	Permissible Input Power:	3W
Operating Temperature:	-50℃～+85℃

RF Filters

Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

Made by low temperature co-firing process, stable structure and high consistency
Small size, light weight and low power
The frequency response can be flexibly customized with a center frequency covering 30Mhz to 138Ghz
SMD chip design, suitable for large-scale patch production process
