    Product Details:

    Place of Origin: wuxi
    Brand Name: Hansejohn
    Certification: Pass-band low-loss, high rejection stopband, rectangular coefficient good
    Model Number: 140MHZ BPF14060-20-16

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: $1-20/pcs
    Packaging Details: REEL
    Delivery Time: 25 day
    Payment Terms: Western Union, MoneyGram
    Supply Ability: 1000000
    Contact Now
    Detailed Product Description

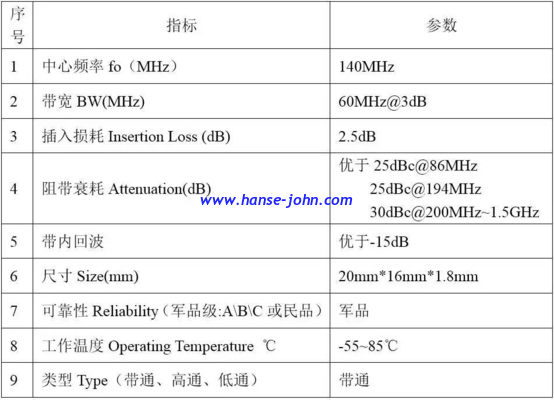

    Center Frequency: 140.00Mhz 3dB Bandwidth: 60Mhz Min
    194Mhz Stop Band Attention: 25dB Min 194Mhz Stopband Attention: 25dB Min
    200Mhz~1.5Ghz Stopband Attention: 30dB Min Echo In The Passband: 1.5dB Max
    Size: 20×16×1.8 Mm Operating Temperature: -55~+85°C
    Insertion Loss: 3.0dB Max Bandwidth Ripple: 1.3dB Max
    DC~30Mhz Stopband Attention: 40dB Min Bandwidth Group Delay Time: 50ns
    Phase Consistency: +/-5°

    RF Filters

      Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers



    • Made by low temperature co-firing process, stable structure and high consistency
    • Small size, light weight and low power
    • The frequency response can be flexibly customized with a center frequency covering 30Mhz to 138Ghz
    • SMD chip design, suitable for large-scale patch production process



    140Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers


    140Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers


    140Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

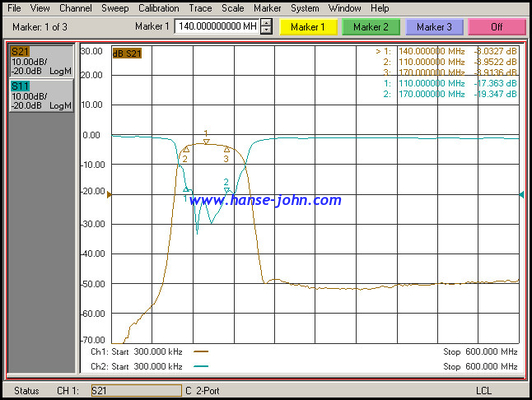

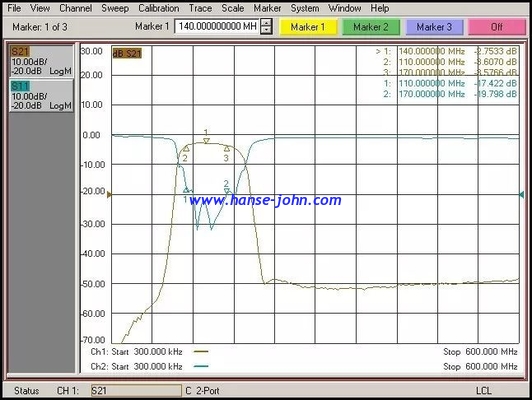

    25°C Test Data

    140Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

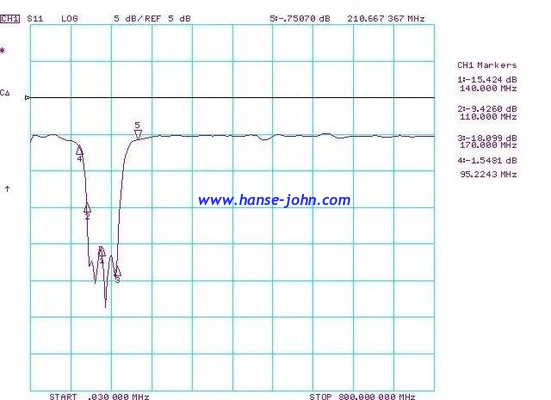

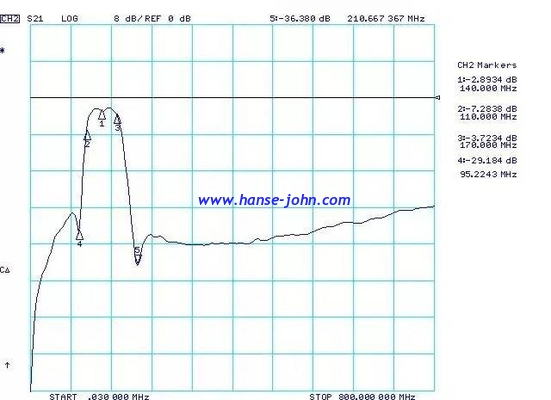

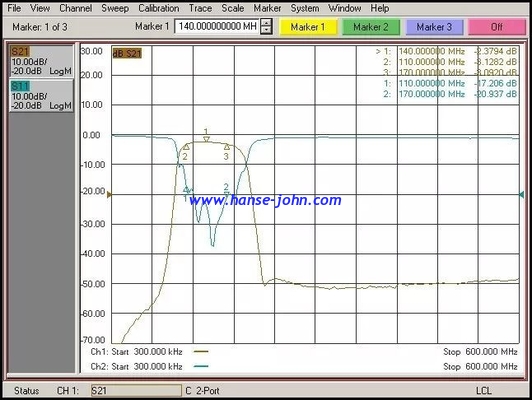

    -55°C Test Data

    140Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    85°C Test Data

    140Mhz RF FILTERS Microwave Bandpass Filters Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers and Triplexers

    125°C Test Data
