10.7Mhz crystal filter 10M15B 10T15BK-10.7M M. C. F. [ Monolithic Crystal Filters ]

Place of Origin:	wuxi
Brand Name:	HANSEJOHN
Certification:	Rohs，ISO
Model Number:	HM10M15B 10T15BK-10.7M M. C. F. [ Monolithic Crystal Filters ]

Minimum Order Quantity:	100
Price:	$1.8-20/pcs
Packaging Details:	In standard export packing as per manufacturer
Delivery Time:	25 day
Payment Terms:	MoneyGram, Western Union
Supply Ability:	200000pcs per month

Contact Now

Detailed Product Description

Number Of Poles:	4	Center Frequency:	10.7Mhz
Bandwidth(3dB):	+/-7.5khz	Bandwidth(40dB):	+/-25khz
(fo±1000KHz) Stop Band Attenuation:	60dB	Ripple （f0±2khz）:	1.0dB
Insertion Loss （At Minimum Loss Point:	2.5dB	Temperature Stability （－20℃～ +80℃ ）:	±0.5% Max (-25℃ ～ +80℃)
Operating Temperature:	-20℃ ～ +80℃	Storage Temperature:	-40℃ ～ +85℃
Terminating Impedance:	3kΩ//1.5pF Cc = 5 PF	Spurious Characteristics:	-------
Stop Bandwidth(90dB):	---------

1.	(Model ):	HM10M7.5B
2.	(Nominal Center Frequency):	10.70MHz
3.	(Pass Band Width at 3dB):	≥7.5kHz
4.	(Ripple in Pass Band Width):	≤1.0dB
5.	(Insertion Loss):	≤2.5dB
6.	(Stop Band Width ):@40dB	25kHz
	Stop Band Width:@90dB	----------
7.	(Guaranteed Attenuation):	≥40dB(+/-1000KHZ)
8.	(Terminating Impedance):3.3kΩ//0pF
9.	(Input level):	0～15dBm
10.	(Operating Temperature Range):	-20℃～+70℃

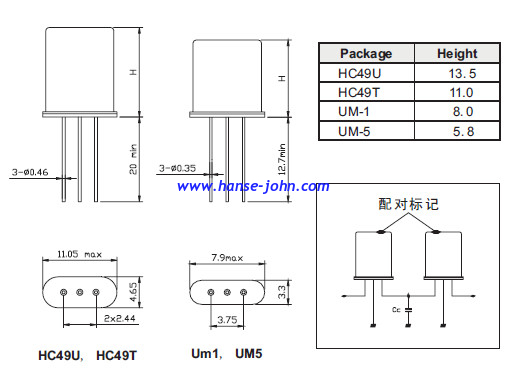

11.	Package type	HC-49T*2 10T15BK-10.7M

10.7Mhz crystal filter 10M15B 10T15BK-10.7M M. C. F. [ Monolithic Crystal Filters ]
