Place of Origin: | wuxi |
Brand Name: | HANSEJOHN |
Certification: | Rohs,ISO |
Model Number: | HM10M15A 10T15AN-10.7M M. C. F. [ Monolithic Crystal Filters ] |
Minimum Order Quantity: | 100 |
---|---|
Price: | $1.8-20/pcs |
Packaging Details: | In standard export packing as per manufacturer |
Delivery Time: | 25 day |
Payment Terms: | MoneyGram, Western Union |
Supply Ability: | 200000pcs per month |
Number Of Poles: | 2 | Center Frequency: | 10.7Mhz |
---|---|---|---|
Bandwidth(3dB): | +/-7.5khz | Bandwidth(18dB): | +/-25khz |
(fo±1000KHz) Stop Band Attenuation: | 40dB | Ripple (f0±2khz): | 0.5dB |
Insertion Loss (At Minimum Loss Point: | 2.0dB | Temperature Stability (-20℃~ +80℃ ): | ±0.5% Max (-25℃ ~ +80℃) |
Operating Temperature: | -20℃ ~ +80℃ | Storage Temperature: | -40℃ ~ +85℃ |
Terminating Impedance: | 3kΩ//2.5pF | Spurious Characteristics: | Min. 18dB Within ±1MHz |
Stop Bandwidth(90dB): | --------- |
1. | (Model ): | HM10M7.5B | |
---|---|---|---|
2. | (Nominal Center Frequency): | 10.70MHz | |
3. | (Pass Band Width at 3dB): | ≥7.5kHz | |
4. | (Ripple in Pass Band Width): | ≤0.5dB | |
5. | (Insertion Loss): | ≤2.0dB | |
6. | (Stop Band Width ):@18dB | 25kHz | |
Stop Band Width:@90dB | ---------- | ||
7. | (Guaranteed Attenuation): | ≥40dB(+/-1000KHZ) | |
8. | (Terminating Impedance):3.3kΩ//0pF | ||
9. | (Input level): | 0~15dBm | |
10. | (Operating Temperature Range): | -20℃~+70℃ | |

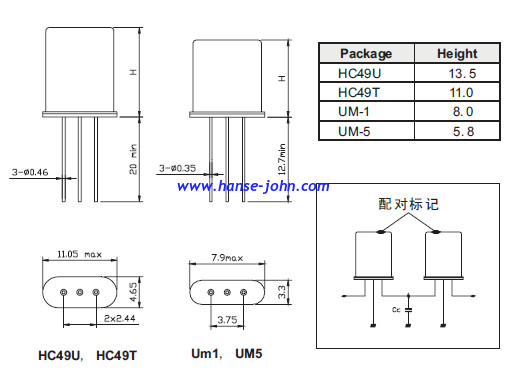

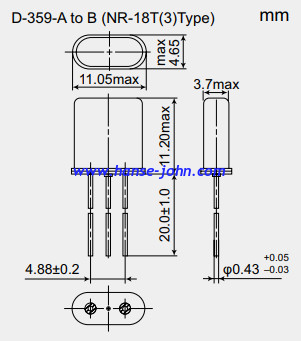

11. | Package type | HC-49T D-359-A |
