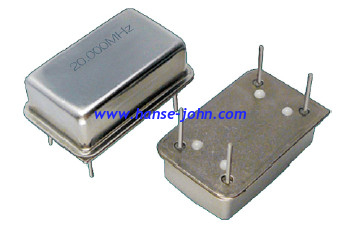

124.800Mhz filter clock oscillator crystal filter Constant temperature crystal Warm crystal oscillator

Minimum Order Quantity:	100
Price:	$200
Packaging Details:	In standard export packing as per manufacturer
Delivery Time:	25 day
Payment Terms:	MoneyGram, Western Union
Supply Ability:	2000pcs per month

Contact Now

Detailed Product Description

Material:	Crystal	Center Frequency:	124.800Mhz
Bandwidth(3dB):	330hz	Bandwidth(40dB):	1000hz
(fo±1000KHz) Stop Band Attenuation:	35dB	Ripple （f0±2khz）:	1.5dB
Insertion Loss （At Minimum Loss Point:	3.0dB	Temperature Stability （－20℃～ +80℃ ）:	±0.5% Max (-25℃ ～ +80℃)
Operating Temperature:	-20℃ ～ +80℃	Storage Temperature:	-40℃ ～ +85℃
Input/Output Impedance:	50Ω

1.	(Model ):	HMCF124.8000
2.	(Nominal Center Frequency):	124.8000MHz
3.	(Pass Band Width at 3dB):	≥1kHz
4.	(Ripple in Pass Band Width):	≤1.0dB
5.	(Insertion Loss):	≤3.0dB
6.	(Stop Band Width ):	3.0kHz @40dB
		5.0kHz @60dB
7.	(Guaranteed Attenuation):	≥35dB
8.	(Terminating Impedance):	50Ω
9.	(Input level):	0～15dBm
10.	(Operating Temperature Range):	-20℃～+70℃
11.	(Dimensions):	25mm×15mm×10mm

124.800Mhz filter clock oscillator crystal filter Constant temperature crystal Warm crystal oscillator
