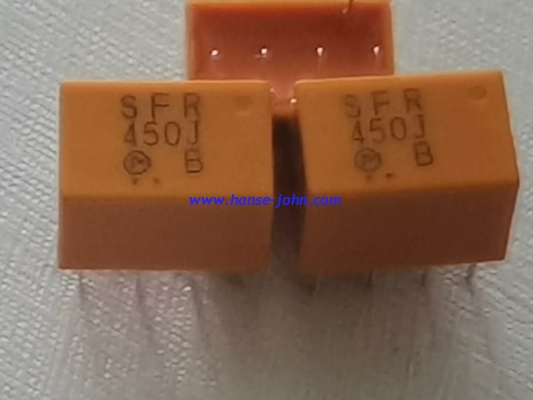

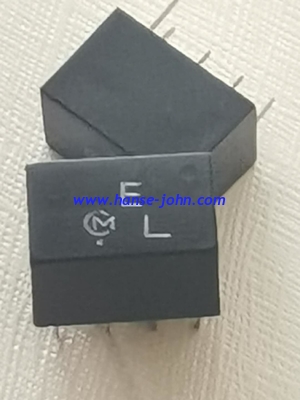

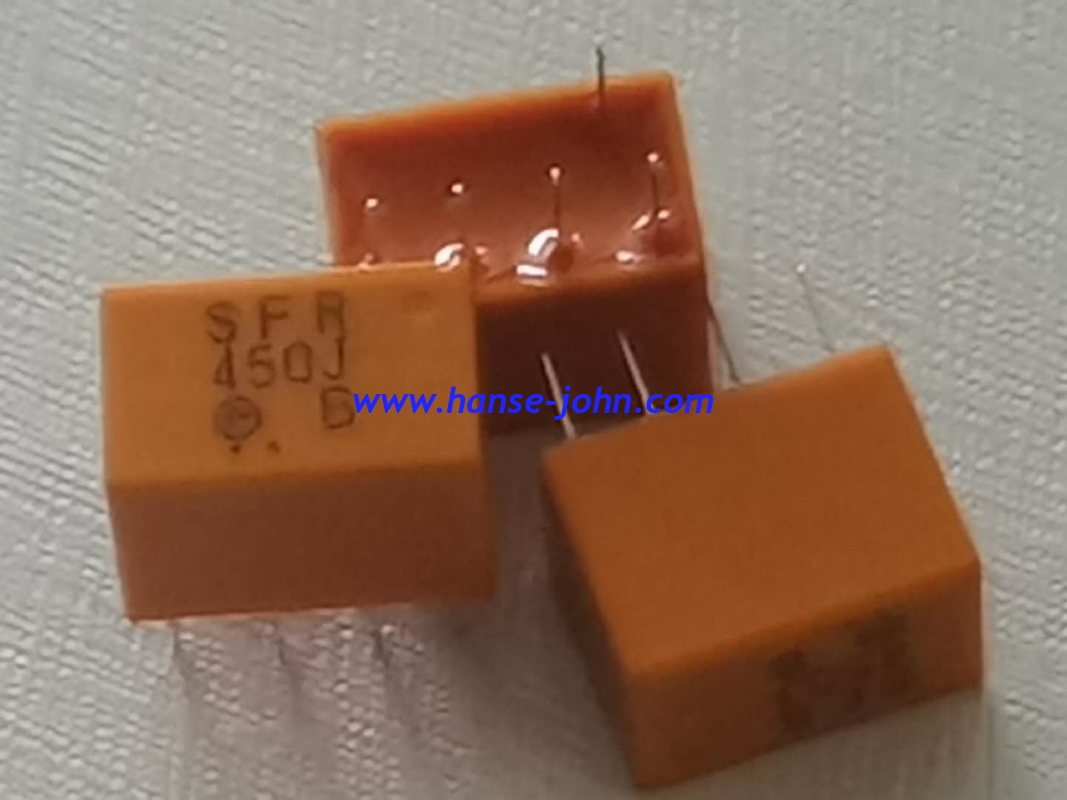

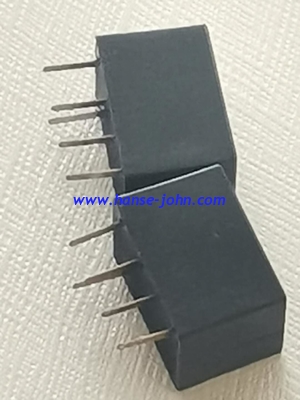

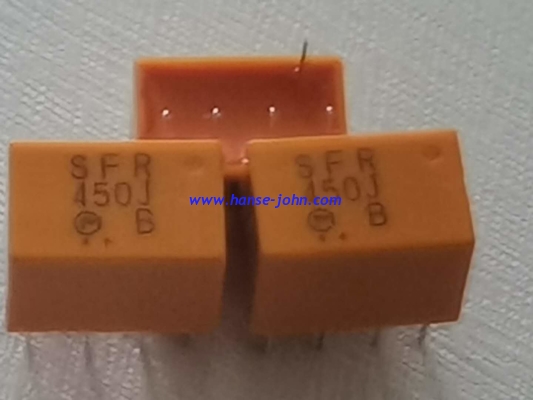

SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR

SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR

    • SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR
    • SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR
    • SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR
    • SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR
    • SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR
    • SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR

    Product Details:

    Place of Origin: wuxi
    Brand Name: HM
    Certification: ROHS，CE
    Model Number: 450KHZ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: $2
    Packaging Details: In standard export packing as per manufacturer
    Delivery Time: 25 day
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    CENTER FREQUENCY: 450KHZ 6dB BANDWIDTH: +/-1.5KHZ Min
    RIPPLE: 2.0dB Max INSERTION LOSS: 7.0dB Max
    STOP BAND ATTENTION: 60dB Min Stop Bandwidth (kHz): Fn±2.0 Min.
    Input/Output Impedance (ohm): 2000



    SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR

    SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR

    SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATORSFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATORSFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR



    Alternative Murata discontinued products

    SFR450J CFWLA450KJFA-B0 LT455JTW-1 CERAMIC FILTER CRYSTAL FILTER PIEZO SENSOR PIEZO ACTUATOR



    Contact Details
    hanse-john electronic Co.,Ltd.

    Contact Person: Mr. liuhongmao

    Tel: 86-0510-13912395130

    Fax: 86-510-88213035

    Send your inquiry directly to us (0 / 3000)

    Other Products
    PIEZOELECTRIC CERAMIC FILTER CFUKF455KC4X-R0 LTUC455KCX,GROUP DELAY TIME 20U,LOW INSERTION LOSS,1DB RIPPLE，
    PIEZOELECTRIC CERAMIC FILTER CFUKF455KC4X-R0 LTUC455KCX,GROUP DELAY TIME 20U,LOW INSERTION LOSS,1DB RIPPLE，

    Center frequency: 455khz

    Bandwidth(3dB): ±9.0KHz min

    (6dB) Bandwidth(6dB): ±12.5KHz min

    Bandwidth(40dB): ±30.0KHz min
    LTUC455KBx CFUKF455KB4X-R0 Piezoelectronic ceramic filter 455khz,LTC455BU/LTC455IU/LTC455HU/LTC455GU/LTC455FU/LTC455E
    LTUC455KBx CFUKF455KB4X-R0 Piezoelectronic ceramic filter 455khz,LTC455BU/LTC455IU/LTC455HU/LTC455GU/LTC455FU/LTC455E

    Center frequency: 455khz

    Bandwidth(3dB): ±12.0KHz min

    (6dB) Bandwidth(6dB): ±15.0KHz min

    Bandwidth(40dB): ±35.0KHz min
    LTUC455KDx LTUCG455D CFUKF455KD1X-R0 Piezoelectronic ceramic filter 455khz,
    LTUC455KDx LTUCG455D CFUKF455KD1X-R0 Piezoelectronic ceramic filter 455khz,

    Center frequency: 455khz

    Bandwidth(3dB): ±7.0KHz min

    (6dB) Bandwidth(6dB): ±10.0KHz min

    Bandwidth(40dB): ±25.0KHz min
    Piezoelectric Ceramic Filter CFUKF455KB4X-R0 LTUC455KBx,Group delay time,low insertion loss,1dB ripple，
    Piezoelectric Ceramic Filter CFUKF455KB4X-R0 LTUC455KBx,Group delay time,low insertion loss,1dB ripple，

    Center frequency: 455khz

    Bandwidth(3dB): ±10.0KHz min

    (6dB) Bandwidth(6dB): ±15.0KHz min

    Bandwidth(40dB): ±35.0KHz min
    Piezoelectric Ceramic Filter CFUKF455KA2X-R0 LTUC455KAx,Group delay time,low insertion loss,1dB ripple，
    Piezoelectric Ceramic Filter CFUKF455KA2X-R0 LTUC455KAx,Group delay time,low insertion loss,1dB ripple，

    Center frequency: 455khz

    Bandwidth(3dB): ±12.0KHz min

    (6dB) Bandwidth(6dB): ±17.5KHz min

    Bandwidth(40dB): ±40.0KHz min
    Piezoelectric Ceramic Filter CFUKG455KE4X-R0 LTUC455KEx,Group delay time,low insertion loss,1dB ripple，
    Piezoelectric Ceramic Filter CFUKG455KE4X-R0 LTUC455KEx,Group delay time,low insertion loss,1dB ripple，

    Center frequency: 455khz

    Bandwidth(3dB): ±5.5KHz min

    (6dB) Bandwidth(6dB): ±7.5KHz min

    Bandwidth(40dB): ±17.5KHz min
    LTUC455KHx ceramic filter 455khz CFUCG455KH1X-R0
    LTUC455KHx ceramic filter 455khz CFUCG455KH1X-R0

    Center frequency: 455khz

    Bandwidth(3dB): ±2.0KHz min

    (6dB) Bandwidth(6dB): ±3.0KHz min

    Bandwidth(40dB): ±10.0KHz min
    sensor

    Piezoelectric ceramic bubble sensor, medical grade, high sensitivity

    635nm 10mW 50 oC Reliable Operation laser diode High visibility Higher Power Small perpendicular divergence angle

    Nano-positioning

    Ring Shape and PZT Material piezo multilayer actuator piezoelectric ceramics

    Multilayer Piezo Ring Actuators Nano fretting / HMH150SERIES Φ25*Φ15 Linear control

    Multilayer Piezo Rectangular Actuators/ HMH200 series

    Multilayer Piezo Rectangular Actuators Linear control / HMJ200 series

    pickup

    High Sensitivity Undersaddle Piezo Cable Pickup for Acoustic Guitar Mini patch
