    Product Details:

    Place of Origin: CHN
    Brand Name: HM

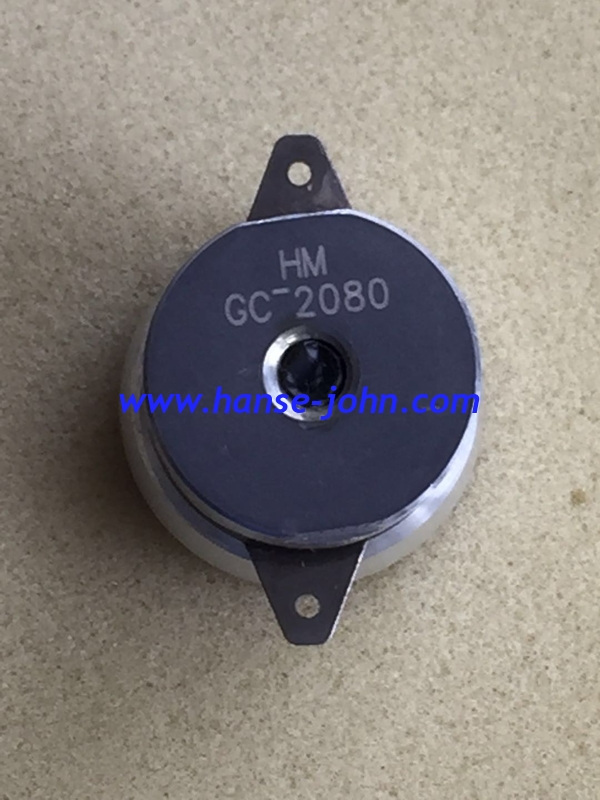

    Model Number: GC-2080

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: $20/pieces
    Packaging Details: Carton
    Delivery Time: 20days
    Payment Terms: L/C
    Supply Ability: 100000per/month
    Contact Now
    Detailed Product Description

    1. SCOPE

                This specification covers the piezoelectric ceramic transducer for cleaning.

    2. TYPE

                 HM-4GC-2080

    3. SPECIFICATION

    3.1 DIMENSIONS

                 As per the drawing No. HM-4GC-2080-01

    3.2 ELECTRICAL SPECIFICATION

    3.2.1 Resonant Frequency (fr)

                fr = 80kHz±3.0kHz

    3.2.2 Resonant Resistance (Ro)

                Ro = max. 30Ω

    3.2.3 Capacitance (Cp)

               Cp = 2370±200pF

    4. TEST PROCEDURE

    4.1 TEST ATMOSPHERE

               23±3℃ 40 ~ 70%RH.

    4.2 Fr AND Ro :

    The HP-4194 Impedance Analyzer.

    4.3 Cp

             LCR meter at 1kHz,1Vrms

    5. INPUT FOR TRANSDUCER

               MAXIMUM INPUT

              Voltage: 300 Vp-p

           Current: 1Ap-pGc-2080,GC-3880,GC-3828,-GC-3840
